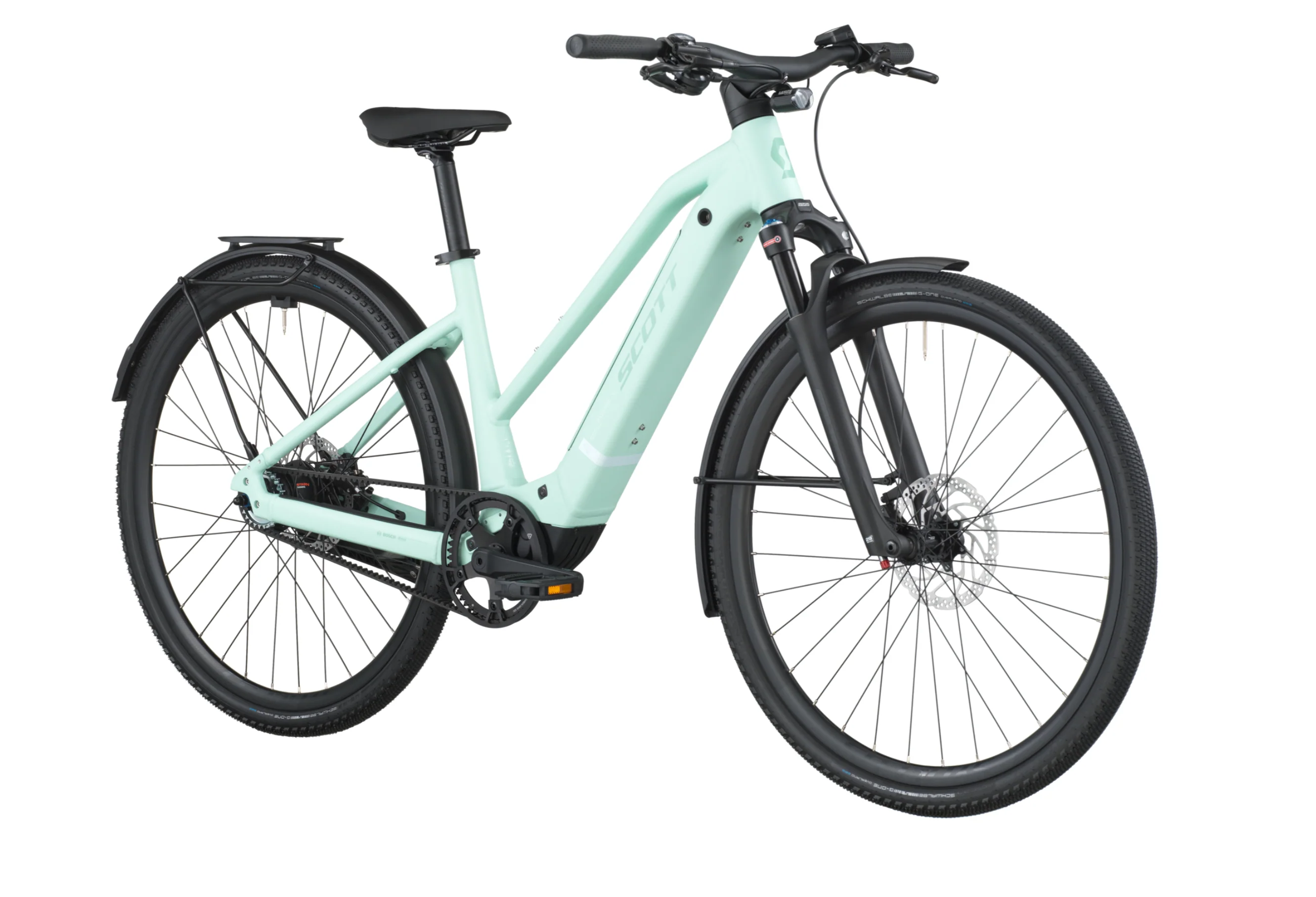

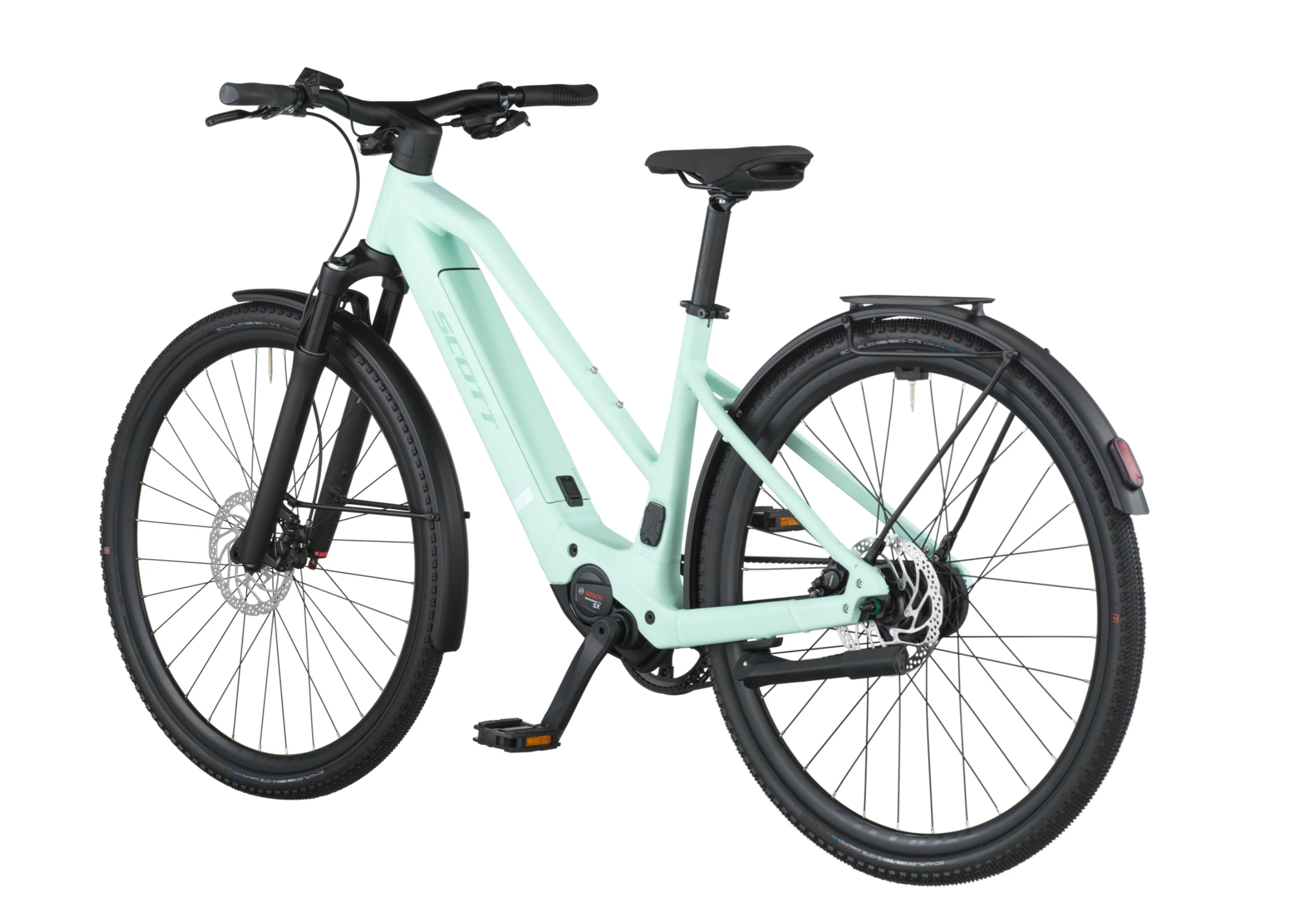

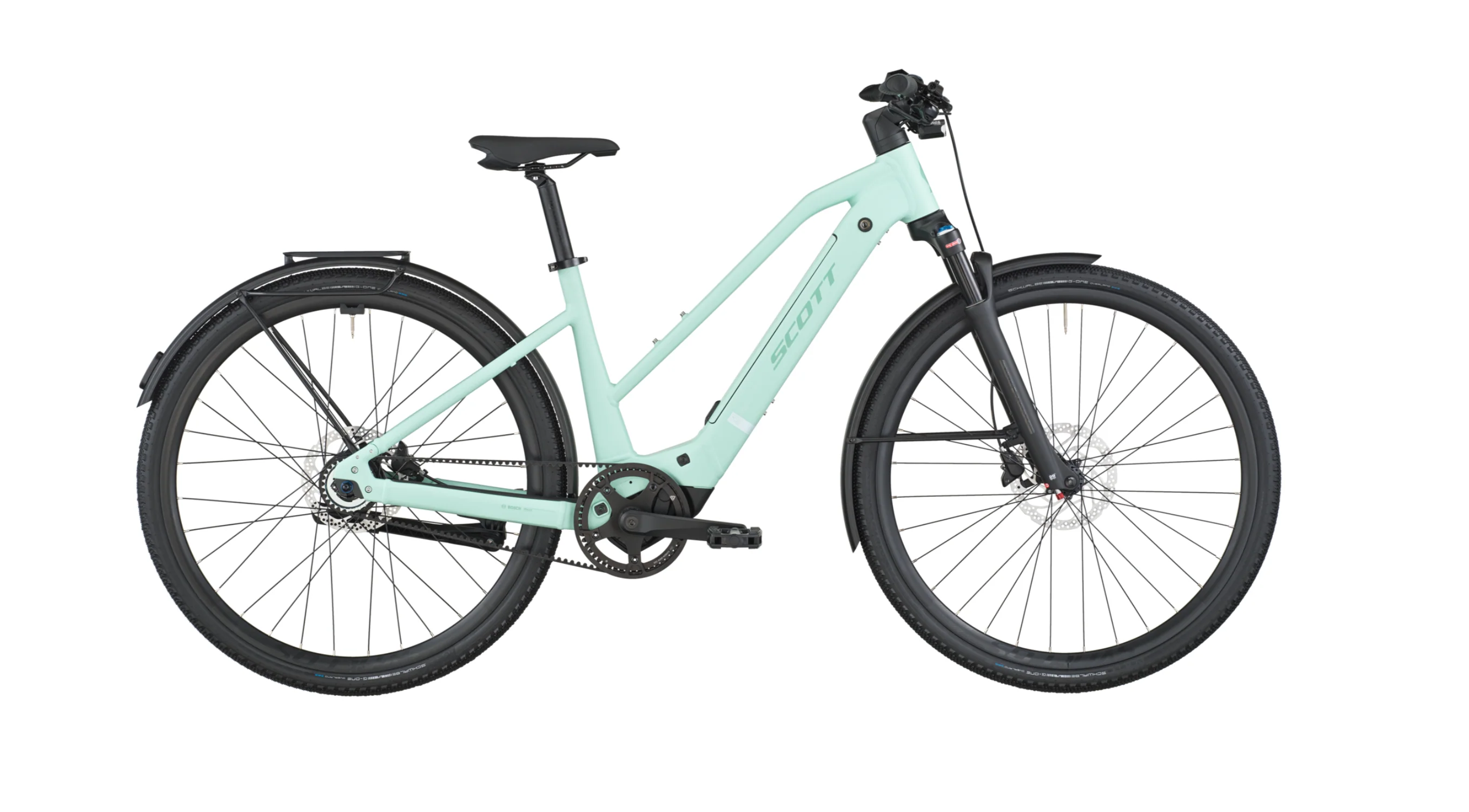

Scott Passage 10 Belt Slope Electric Hybrid Bike In Mint Green

The Passage 10 Belt Slope E-Bike shares all the power and balanced ride quality of our Passage 10 Belt Bike for effortless and fun riding around town, but it has a lower standover height, making it easier to mount.

Passage 10 Belt Slope avoids the mainstream, bulky aesthetics of most e-urban bikes by using Bosch’s 2kg SX motor and slim 400Wh battery. It’s a powerful combo that keeps the bike light and balanced while delivering hill-crushing power whenever you need it and the range to easily handle a long commute.

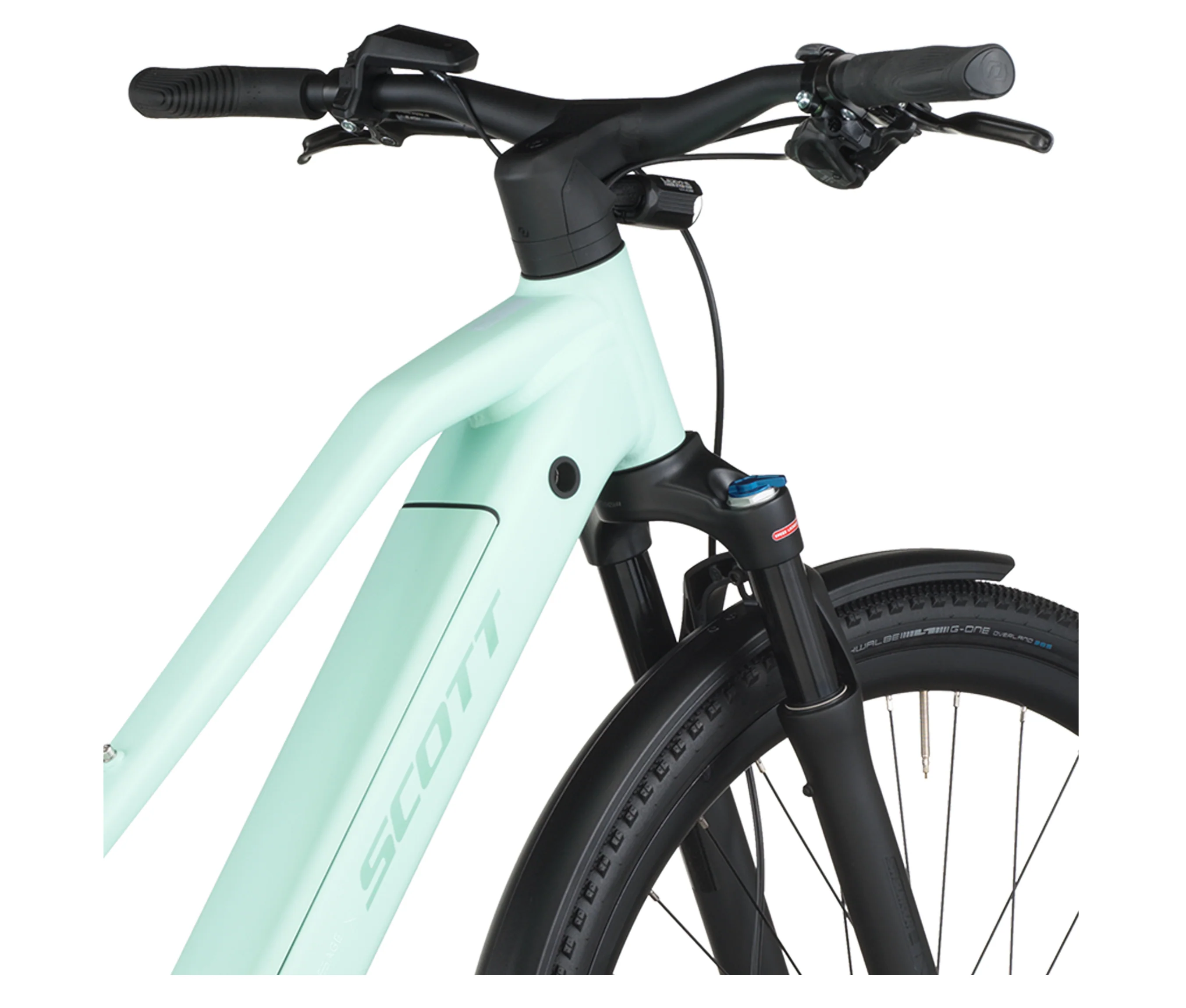

The Bosch SX motor is also nice on the legs, featuring a narrower Q-factor that lets you have a natural pedaling style compared to larger e-bikes you’ll see in the city. Out front is a 75mm suspension fork that cushions your ride from rougher pavement as you zip around town. And if taking the scenic route or packing extra for the commute in, the rear rack sets you up to stow the day’s essentials.

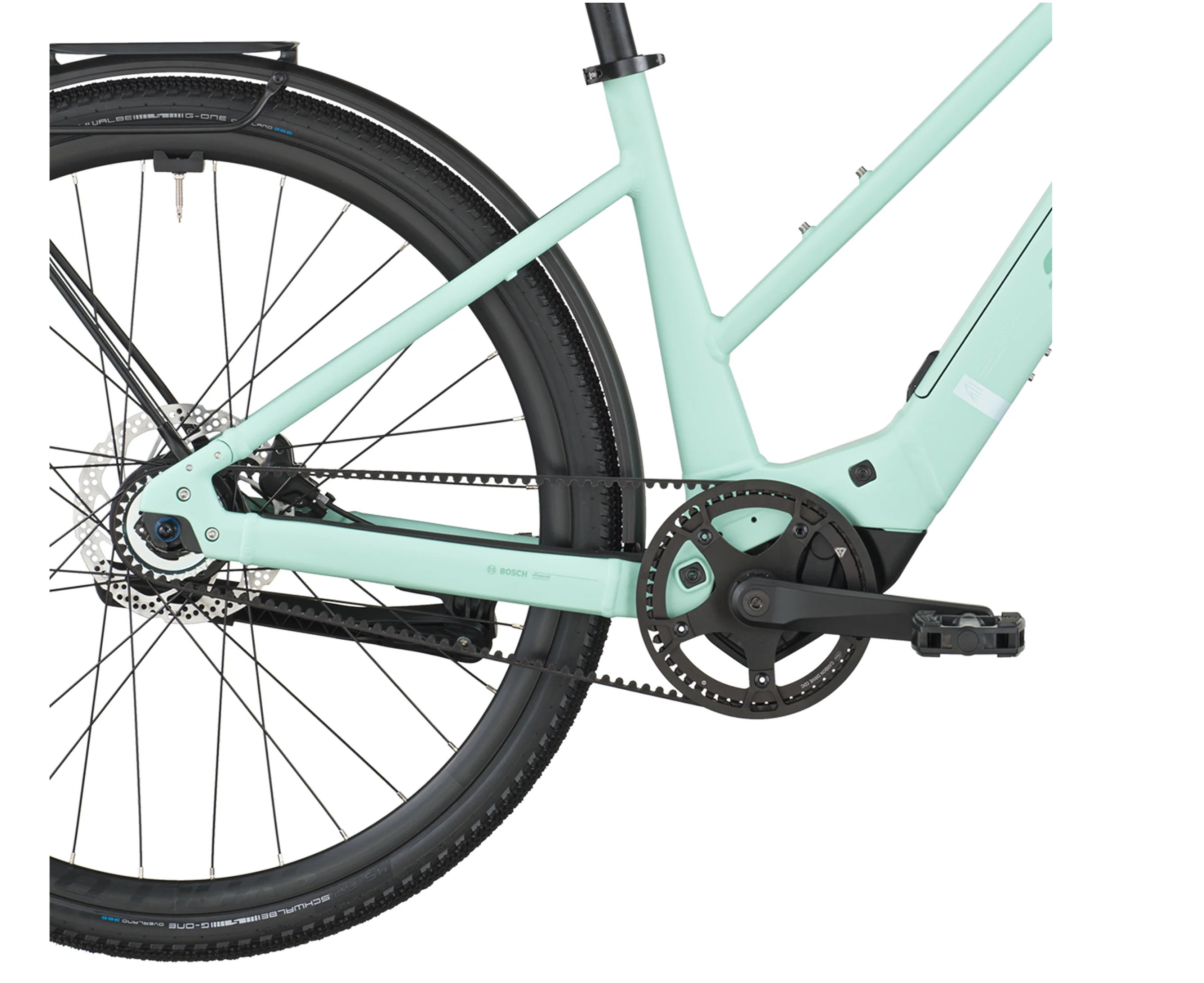

This Passage 10 uses a belt drivetrain that stays much cleaner than a traditional chain drivetrain, uses no lubricant, won’t snag on your clothing, and requires little to no maintenance. So when you’re ready to park Passage for the day, kick out the kickstand and thank it for the effortless ride.

Scott Passage 10 Belt Slope Electric Hybrid Bike In Mint Green Specification:

Frame:Alloy S-L=29", 6061 Alloy custom butted tubing, Top extraction battery
Fork:SR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Alloy Steerer, 75mm Travel
Shift Levers:Shimano Alfine SL-S503 Rapid Fire Plus
Front Brake:Shimano BR-MT200 Disc
Rear Brake:Shimano BR-MT200 Disc
Front Brake Disc:SM-RT30 CL 180mm
Rear Brake Disc:SM-RT30 CL 160mm
Front Wheel Rim:Syncros X15 Disc
Rear Wheel Rim:Syncros X15 Disc
Front Tyre:Schwalbe G-One Overland 365 Performance, 700x45C
Rear Tyre:Schwalbe G-One Overland 365 Performance, 700x45C
Front Hub:Shimano HBTC50015B CL, 15x100mm
Rear Hub:Shimano Nexus 8 Speed
Spokes:Black Spokes
Handlebars:Syncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount
Headset:Acros, 1.5"- 1.5", semi integ. OD 50/61mm, ID 44/55mm
Saddle:Syncros Capilano
Seatpost:Syncros M3.0, 31.6
Crankset:FSA CK-220 170mm
Chain:Gates CDC 125T
Cassette:Gates CDC 26T
Pedals:Marwi SP-827
Front Light:Lezyne Fusion E550SM
Rear Light:Supernova TL3Z
Rack:Racktime Micro Rack SnapIt 2.0 8KG
Mudguards:Alumee alloy profile Fender
Kickstand:Hebie Kickstand
Motor:Bosch Performance Line SX (BDU314Y)
Battery:Compact Tube 400Wh
Display:Bosch Purion 200
Charger:2A Charger
